Rack Battery LSRR5-20kWh

LESSO Rack Battery

LSRR 5-20kWh

5-20kWh | Low voltage battery

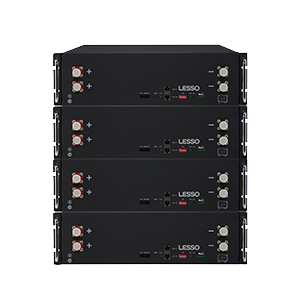

LSRR4.92-19.68kWh

Residential rack energy storage systems are increasingly popular as they offer energy security, cost savings, and environmental benefits for homeowners. By storing excess energy generated by solar panels or other renewable sources, these systems reduce reliance on the grid, lower electricity bills, and provide backup power during outages. They also contribute to grid stability by smoothing out energy supply and demand fluctuations. Furthermore, residential rack energy storage systems enable homeowners to maximize the use of renewable energy and reduce their carbon footprint, offering a sustainable and reliable solution for managing energy needs while benefiting the environment and the electricity grid.

储能逆变器系列 icon-29.可配置交流,太阳能输入优先级,充电电流

Safety: High safety, LiFePO4 battery; fire-resistant; lithium ferrous phosphate (LFP) cells meet UL1973, IEC62619 UN38.3 certification

储能逆变器系列 icon-31.兼容电源电压或发电机电源

Flexible: Long cycle life (>6000 cycles@ 80% DOD) with wall mounted options

储能储能系列 icon-时间寿命

A 15-year life design with a long lifespan and superior performance

储能储能系列 icon-环保无污染

Flexible: Long cycle life (>6000 cycles@ 80% DOD) with wall mounted options

Performance Advantages

The Residential Rack Energy Storageis designed for household applications and features modularity, supporting up to 32 units in parallel without requiring external control circuits, allowing for a power configuration ranging from 5kWh to 160kWh. Its compact form factor and 3U (133mm) standard height design make it flexible for deployment, with the ability to select the appropriate installation method based on different scenario requirements. The nominal voltage of this product is 51.2V, with a nominal capacity of 100Ah, resulting in a nominal energy storage capacity of up to 5.12kWh. In operational mode, the voltage range is between 44.8V and 56V, with a maximum discharge current of 100A.

Model: LSRR51V100AH-LFP
Battery Type: LiFePO4
Nominal energy: 4.92kWh
Nominal voltage: 51.2V
Nominal capacity: 100Ah
Nominal Charging/Discharging Current: 70A/100A
Installation: Rack Mounted/cabinet



See datasheet for details
