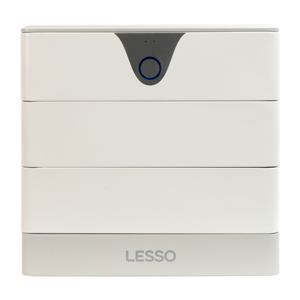

Stacked Battery LSRS10-20kWh

LSRS 10-20kWh

LESSO Stacked Battery

10-20kWh | High voltage battery

LSRS10.24-20.48kWh

Residential stacked energy storage systems are revolutionizing the way homeowners manage their energy needs. By stacking multiple batteries together, these systems can store large amounts of energy in a compact space, making them ideal for homes with limited real estate. This technology enables homeowners to take advantage of solar panels or other renewable energy sources, storing excess energy for use during peak periods or when the sun is not shining. Stacked energy storage can also provide reliable backup power during power outages, improving a home’s energy security. With their compact design and versatile applications, these systems will play a key role in promoting a more sustainable and resilient energy future for residential properties.

储能储能系列 icon-安全性

Safety: Safer lithium iron phosphate, design comply with IEC, UL standards

储能逆变器系列 icon-31.兼容电源电压或发电机电源

Wide compatibility: Compatible with multiple brands of main stream inverter use

储能储能系列 icon-时间寿命

Long cycle life and superior performance

储能逆变器系列 icon_23.支持多方向系统设计s

Scalability: 10 kWh~20kWh can be extended

Performance Advantages

Residential stackable energy storage systems are designed for 3 phase household and commercial applications and utilize safer lithium iron phosphate batteries, with a design that adheres to IEC standards. They boast a design life of up to 15 years and offer high-performance cycle life. The installation process is extremely simple, requiring only stacking to complete. Additionally, the energy capacity can be expanded from as little as 10.24 kWh up to 20.48 kWh.

Model: LSRS205V50AH-LFP
Battery Type: LiFePO4
Nominal energy: 10.24kWh
Nominal voltage: 204.8V
Nominal capacity: 50Ah
Nominal Charging/Discharging Current: 50A/50A
Installation: Stacked/Ground mounted



Model: LSRS307V50AH-LFP
Battery Type: LiFePO4
Nominal energy: 15.36kWh
Nominal voltage: 307.2V
Nominal capacity: 50Ah
Nominal Charging/Discharging Current: 50A/50A
Installation: Stacked/Ground mounted



Model: LSRS410V50AH-LFP
Battery Type: LiFePO4
Nominal energy: 20.48kWh
Nominal voltage: 409.6V
Nominal capacity: 50Ah
Nominal Charging/Discharging Current: 50A/50A
Installation: Stacked/Ground mounted



Datasheet Details
